Product Details:
|
| Warranty: | 1 Years | Customized Support: | OEM, ODM |
|---|---|---|---|
| Power Supply: | 110/220v, 100-240V/50-60HZ | Display Type: | LCD(LED )Display |
| Material: | Mild Steel Or Stainless Steel | Capacity/accuracy: | 1000kg, 2000kg, 3000kg, 5000kg |
| Color: | Customized Color | Size: | Customized Size |
| Port: | Shanghai ,ningbo |

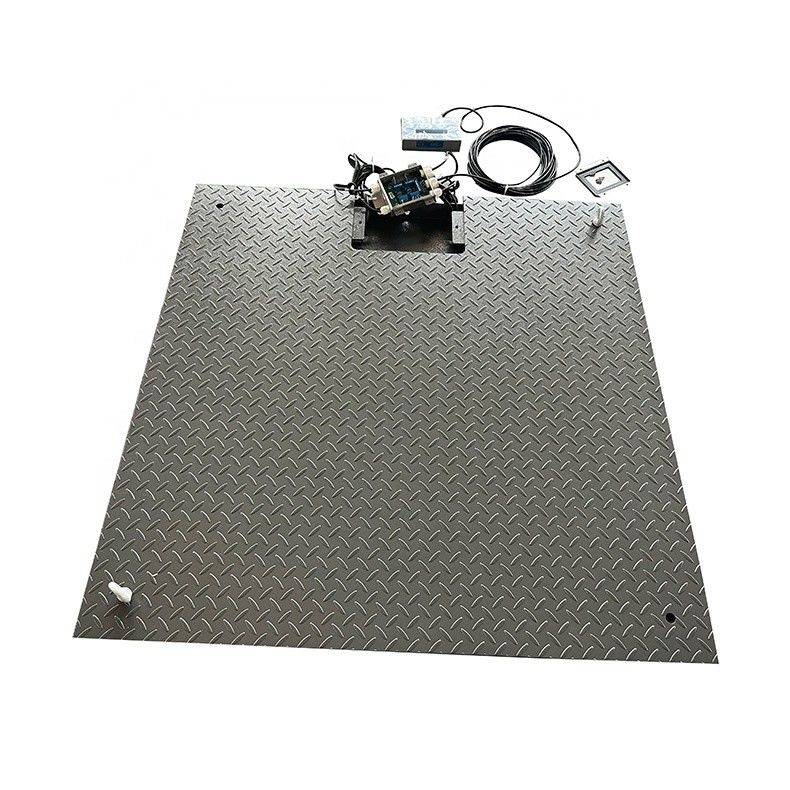

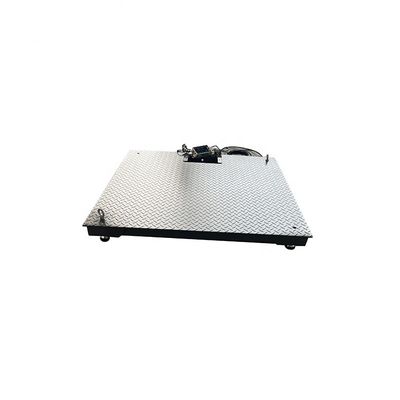

1) Single deck(without bottom-border frame)
2) 5mm thick whole checker plate platform
3) mild steel structure,powder-coated finishing,
4) U shape beams by moulds
5) with zemic H8C or Keli SQB load cells(OIML approval)
6) with our B6E indicator
7) with plastic junction, and 3.5m cable
High precision A/D conversion, Readability is 1/30000;
Zero position tracking range and zero setting (boot/manual) range can be set respectively;
Digital filtering speed, amplitude and the stable time can be set;
Weighing counting function;
Backlight models is optional;
Rechargeable;With under voltage alarm and protection;
LED is With 4 V/ 4 Ah maintenance-free rechargeable battery.
LCD is with 6V/4Ah maintenance-free rechargeable battery
With RS232 connection (optional)
A/D conversion mode:Σ-Δ conversion mode
A/D conversion rate: 10t/S
Maximum A/D conversion:24bit
input signal range:-10mV~15mV
input sensitivity:≥1μV/e
Load cell excitation power:DC3.3V.
