18m 20m 60T 80T 100T 120T 150T Electronic Digital Truck Scale Weighbridge Capacity 10-250T

Large Image : 18m 20m 60T 80T 100T 120T 150T Electronic Digital Truck Scale Weighbridge Capacity 10-250T

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	FIVESCALES
Model Number:	Truck Scale

Payment & Shipping Terms:

Price:	$6,500.00/pieces >=1 pieces
Packaging Details:	Standard wooden cases are used to prevent product damage
Supply Ability:	500 Piece/Pieces per Month

Contact Now

18m 20m 60T 80T 100T 120T 150T Electronic Digital Truck Scale Weighbridge Capacity 10-250T

Description

Warranty:	5years	Customized Support:	OEM, ODM
Power Supply:	220v/50Hz	Display Type:	LED
Capacity:	10-250T	Accuracy Level:	OIML(III)
Relative Humidity:	<95%	Safety Overload:	125%F.S
Degree Of Protection:	IP68 Level	Weighbridge Platform Width:	3 Meter -4 Meter
Length Of Weighbridge Platform:	9 Meter -26 Meter	Maximum Capacity:	30 Ton -300T On
Port:	Shanghai ,ningbo

Product Description

Platform size	310M, 312M, 314M, 316M ,3*18m ,can be ordered
Capacity	60T,80T,100T,120T,150T,200T ,can be ordered
Accuracy Class	OIML Ⅲ
Safe Overload	125%f.s
Limit Overload	150%F.S
Scale Structrue Form	Modular Structure
Temperature Range	20°C ~ 50°C
Accuracy	5KG/10KG/20KG/50KG
Division Value	5KG/10KG/20KG

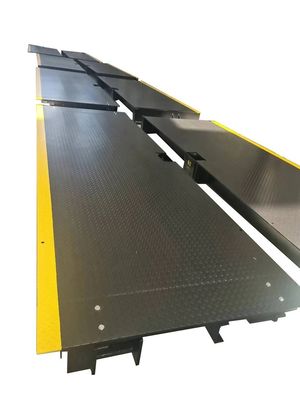

FIVESCALES weighbridge scale

High strength steel plate

Thickness of 10mm, 12mm, 14mm, 16mm or customized

Chequer plate optional

Safety load: 150% with OIML, CE, NTEP certificates

FIVESCALES weighbridge scale

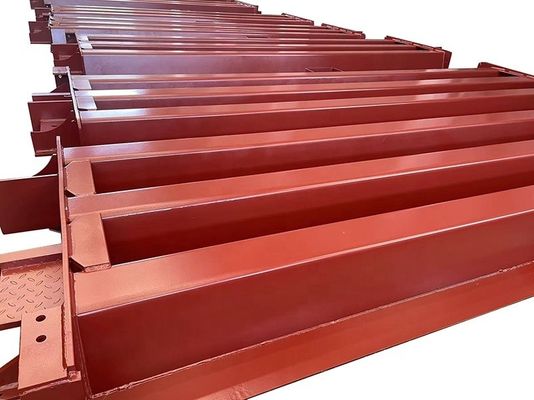

Thickened U shape beams, each equipped with 6pcs,7pcs and 1 in middle specially for exporting

Eco-friendly epoxy zinc rich painting material
passing the International standard, Anti rust and anti corrosion, to make sure its safety

FIVESCALES weighbridge scale indicator

weighing indicator, widely used.

AC, DC can be used, simple maintenance, strong anti-jamming

FIVESCALES weighbridge scale loadcell

KELI brand load cells, or ZEMIC optional.

With high accuracy, good longterm stability.

Each equipped with 4pcs, 6pcs, 8pcs, 12pcs load cell depend on size

Introduction of Production Process


1.Laser cutting	2.Bending u-beam(max. thickness 10mm)

2.Bending Machine bending u-beam	2.1. u-beam(max. thickness 10mm)for example

3.Pre-assembling	4.Automatic welding of u-beams

5.Test on every part	6.1.Side plate welding by Robot

6.2.Welding	6.3.Side plate welding by Robot

7. Bridge deck finishing	8.Polishing on work pieces

9.1. Pre-assembling before shot-blasting	9.2.Pre-assembling before shot-blasting

10.1.Shot-blasting	10.2.Pre-assembling before shot-blasting

11.1.High quality painting in dust-free room	11.2.Stoving varnish for every painted work piece which greatly improves rust protection performance and shortens lead time

12. Work piece after stoving varnish	13. Packing & Shipping
