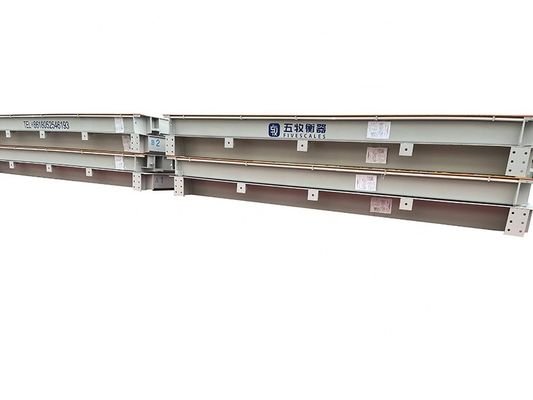

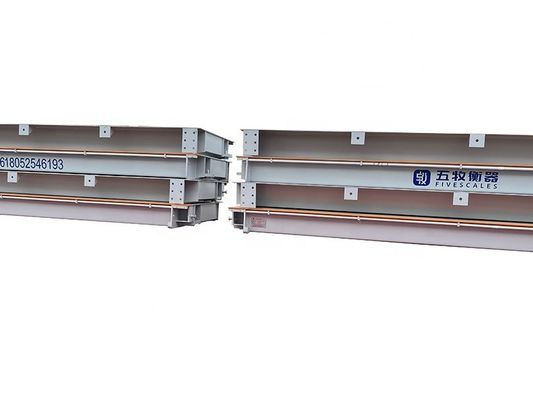

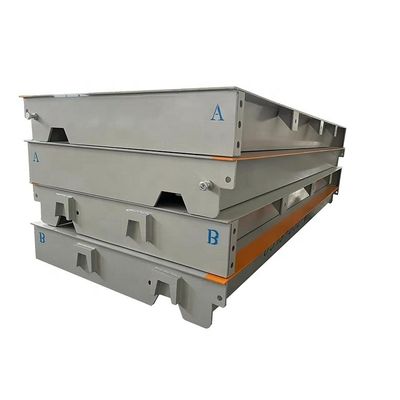

IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge

IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge
IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge

Large Image :  IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge

Product Details:
Place of Origin: Jiangsu, China
Brand Name: FIVESCALES
Model Number: Truck Scale
Payment & Shipping Terms:
Price: $6,500.00/pieces >=1 pieces
Packaging Details: Standard wooden cases are used to prevent product damage
Supply Ability: 500 Piece/Pieces per Month
Contact Now

IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge

Description
Warranty: 5years Customized Support: OEM, ODM
Power Supply: 220v/50Hz Display Type: LED
Capacity: 10-250T Accuracy Level: OIML(III)
Relative Humidity: <95% Safety Overload: 125%F.S
Degree Of Protection: IP68 Level Weighbridge Platform Width: 3 Meter -4 Meter
Length Of Weighbridge Platform: 9 Meter -26 Meter Maximum Capacity: 30 Ton -300T On
Port: Shanghai ,ningbo

Product Description
Platform size
3*10M, 3*12M, 3*14M, 3*16M ,3*18m ,can be ordered
Capacity
60T,80T,100T,120T,150T,200T ,can be ordered
Accuracy Class
OIML  Ⅲ
Safe Overload
125%f.s
Limit Overload
150%F.S
Scale Structrue Form
Modular Structure
Temperature Range
20°C ~ 50°C
Accuracy
5KG/10KG/20KG/50KG
Division Value
5KG/10KG/20KG

IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 0
FIVESCALES weighbridge scale
High strength steel plate
Thickness of 10mm, 12mm, 14mm, 16mm or customized
Chequer plate optional
Safety load: 150% with OIML, CE, NTEP certificates

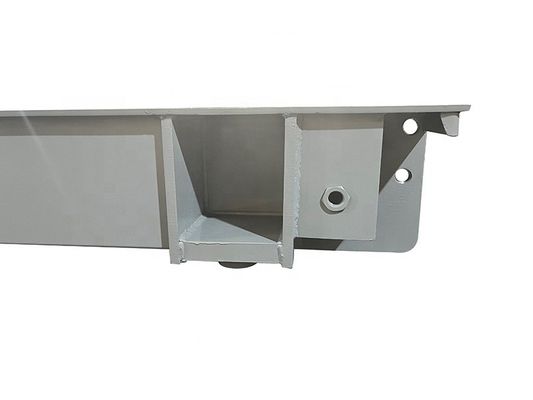

FIVESCALES weighbridge scale

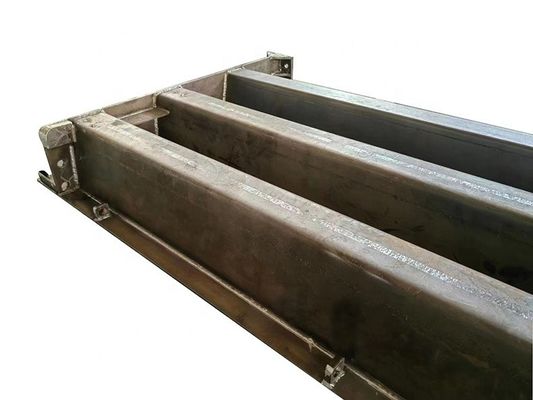

Thickened U shape beams, each equipped with 6pcs, and 1 in middle specially for exporting
Eco-friendly epoxy zinc rich painting material
passing the International standard, Anti rust and anti corrosion, to make sure its safety
IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 1
IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 2
FIVESCALES weighbridge scale
weighing indicator, widely used.
AC, DC can be used, simple maintenance, strong anti-jamming
FIVESCALES weighbridge scale
KELI brand load cells, or ZEMIC optional.
With high accuracy, good longterm stability.
Each equipped with 4pcs, 6pcs, 8pcs, 12pcs load cell depend on size
IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 3

Introduction of Production Process

IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 4 IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 5

1.Laser cutting

 2.Bending u-beam(max. thickness 10mm)
IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 6 IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 7
2.Bending Machine bending u-beam 2.1. u-beam(max. thickness 10mm)for example
IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 8 IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 9
3.Pre-assembling 4.Automatic welding of u-beams
IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 10 IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 11
5.Test on every part 6.1.Side plate welding by Robot
IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 12 IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 13
6.2.Welding  6.3.Side plate welding by Robot
IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 14 IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 15
7. Bridge deck finishing 8.Polishing on work pieces
IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 16 IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 17
9.1. Pre-assembling before shot-blasting 9.2.Pre-assembling before shot-blasting
IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 18 IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 19
10.1.Shot-blasting 10.2.Pre-assembling before shot-blasting
IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 20 IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 21
11.1.High quality painting in dust-free room 11.2.Stoving varnish for every painted work piece which greatly improves rust protection performance and shortens lead time
IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 22 IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 23
12. Work piece after stoving varnish 13. Packing & Shipping
Company Information

IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 24

Certifications

IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 25

Trade Area

IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 26

Package

IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 27

Project Example

IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 28

Our Service & FAQ

IP68 Protection 80 Ton Digital Scale for 30 Ton Loaded Cells Electronic Weighbridge 29

Contact Details
