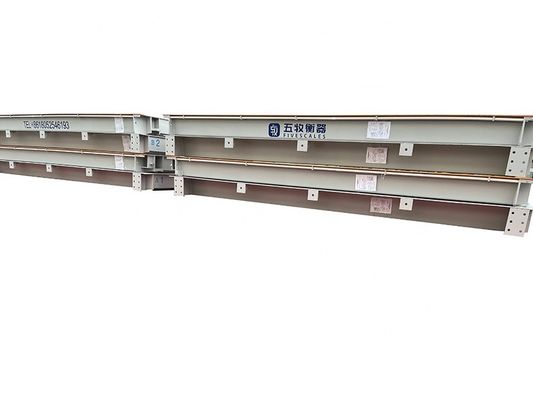

80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity

80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity
80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity

Large Image :  80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity

Product Details:
Place of Origin: Jiangsu, China
Brand Name: FIVESCALES
Model Number: Truck Scale
Payment & Shipping Terms:
Price: $6,500.00/pieces >=1 pieces
Packaging Details: Standard wooden cases are used to prevent product damage
Supply Ability: 500 Piece/Pieces per Month
Contact Now

80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity

Description
Warranty: 5years Customized Support: OEM, ODM
Power Supply: 220v/50Hz Display Type: LED
Capacity: 10-250T Accuracy Level: OIML(III)
Relative Humidity: <95% Safety Overload: 125%F.S
Degree Of Protection: IP68 Level Weighbridge Platform Width: 3 Meter -4 Meter
Length Of Weighbridge Platform: 9 Meter -26 Meter Maximum Capacity: 30 Ton -300T On
Port: Shanghai ,ningbo

Product Description
Platform size
3*10M, 3*12M, 3*14M, 3*16M ,3*18m ,can be ordered
Capacity
60T,80T,100T,120T,150T,200T ,can be ordered
Accuracy Class
OIML  Ⅲ
Safe Overload
125%f.s
Limit Overload
150%F.S
Scale Structrue Form
Modular Structure
Temperature Range
20°C ~ 50°C
Accuracy
5KG/10KG/20KG/50KG
Division Value
5KG/10KG/20KG

80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 0
FIVESCALES weighbridge scale
High strength steel plate
Thickness of 10mm, 12mm, 14mm, 16mm or customized
Chequer plate optional
Safety load: 150% with OIML, CE, NTEP certificates
FIVESCALES weighbridge scale

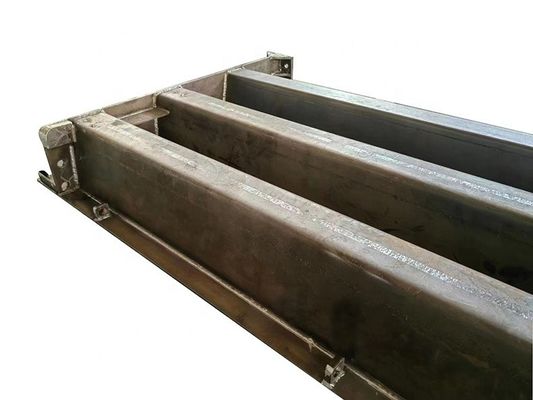

Thickened U shape beams, each equipped with 6pcs, and 1 in middle specially for exporting
Eco-friendly epoxy zinc rich painting material
passing the International standard, Anti rust and anti corrosion, to make sure its safety
80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 1
80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 2
FIVESCALES weighbridge scale
weighing indicator, widely used.
AC, DC can be used, simple maintenance, strong anti-jamming
FIVESCALES weighbridge scale
KELI brand load cells, or ZEMIC optional.
With high accuracy, good longterm stability.
Each equipped with 4pcs, 6pcs, 8pcs, 12pcs load cell depend on size
80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 3

Introduction of Production Process

80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 4 80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 5

1.Laser cutting

 2.Bending u-beam(max. thickness 10mm)
80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 6 80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 7
2.Bending Machine bending u-beam 2.1. u-beam(max. thickness 10mm)for example
80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 8 80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 9
3.Pre-assembling 4.Automatic welding of u-beams
80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 10 80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 11
5.Test on every part 6.1.Side plate welding by Robot
80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 12 80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 13
6.2.Welding  6.3.Side plate welding by Robot
80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 14 80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 15
7. Bridge deck finishing 8.Polishing on work pieces
80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 16 80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 17
9.1. Pre-assembling before shot-blasting 9.2.Pre-assembling before shot-blasting
80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 18 80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 19
10.1.Shot-blasting 10.2.Pre-assembling before shot-blasting
80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 20 80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 21
11.1.High quality painting in dust-free room 11.2.Stoving varnish for every painted work piece which greatly improves rust protection performance and shortens lead time
80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 22 80 Ton 100 Ton Electronic Weighing Scale for Truck Weigh Bridge 95% Relative Humidity 23
12. Work piece after stoving varnish 13. Packing & Shipping
